康视达条形光源CST-2BD系列
康视达条形光源CST-2BD系列

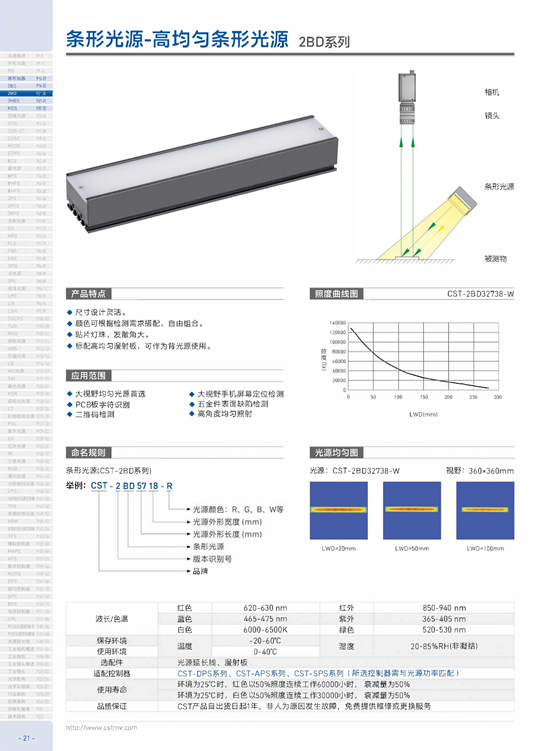

条形光源CST-2BD系列产品特点
尺寸设计灵活；
照射角度可根据检测需求随意调整；
颜色可根据检测需求搭配，自由组合；
贴片灯珠，发散角大；
标配高均匀漫射板（冬瓜白漫射板），可作为背光源使用。
条形光源CST-2BD系列应用范围
大视野打光首选；
PCB字符识别；
二维码、一维码条码读取识别；
大视野手机屏幕定位检测；
五金件表面缺陷检测；
高角度均匀照射。
条形光源CST-2BD系列基本参数
| 波长/色温 | 红外 | 850-940nm |
红色 | 620-630nm | |
绿色 | 520-530nm | |
蓝色 | 465-475nm | |
紫外 | 365-405nm | |
白色 | 6000-10000K | |
使用温度/湿度 | 0-40℃ | 20-85%(非凝结) |
保存温度/湿度 | -20~60℃ | 20-85%(非凝结) |
可选配件 | 光源延长线；漫射板 | |
适配控制器 | CST-DPS系列、CST-APS系列、CST-SPS系列（所选控制器需与光源功率匹配） | |
使用寿命 | 环境为25℃时，红色以50%照度连续工作60000小时，衰减量为50%； 环境为25℃时，白色以50%照度连续工作30000小时，衰减量为50%； 环境为25℃时，紫外以50%照度连续工作5000小时，衰减量为50%。 | |
品质保证 | CST产品自出货日起1年（紫外仅半年），非人为原因发生故障，免费提供维修或更换服务。 | |

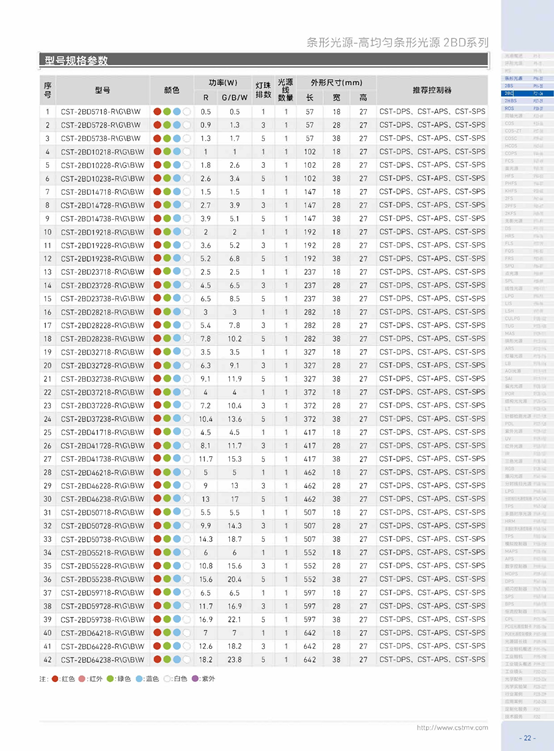

条形光源CST-2BD系列型号规格参数
| 型号 | R功率(w) | G/B/W功率(w) | 灯珠排数 | 光源线数量 | 长度 | 宽度 | 高度 |
CST-2BD5718-R/G/B/W | 0.5 | 0.5 | 1 | 1 | 57 | 18 | 27 |
CST-2BD5728-R/G/B/W | 0.9 | 1.3 | 3 | 1 | 57 | 28 | 27 |
CST-2BD5738-R/G/B/W | 1.3 | 1.7 | 5 | 1 | 57 | 38 | 27 |
CST-2BD10218-R/G/B/W | 1 | 1 | 1 | 1 | 102 | 18 | 27 |
CST-2BD10228-R/G/B/W | 1.8 | 2.6 | 3 | 1 | 102 | 28 | 27 |
CST-2BD10238-R/G/B/W | 2.6 | 3.4 | 5 | 1 | 102 | 38 | 27 |
CST-2BD14718-R/G/B/W | 1.5 | 1.5 | 1 | 1 | 147 | 18 | 27 |
CST-2BD14728-R/G/B/W | 2.7 | 3.9 | 3 | 1 | 147 | 28 | 27 |
CST-2BD14738-R/G/B/W | 3.9 | 5.1 | 5 | 1 | 147 | 38 | 27 |
CST-2BD19218-R/G/B/W | 2 | 2 | 1 | 1 | 192 | 18 | 27 |
CST-2BD19228-R/G/B/W | 3.6 | 5.2 | 3 | 1 | 192 | 28 | 27 |
CST-2BD19238-R/G/B/W | 5.2 | 6.8 | 5 | 1 | 192 | 38 | 27 |
CST-2BD23718-R/G/B/W | 2.5 | 2.5 | 1 | 1 | 237 | 18 | 27 |
CST-2BD23728-R/G/B/W | 4.5 | 6.5 | 3 | 1 | 237 | 28 | 27 |
CST-2BD23738-R/G/B/W | 6.5 | 8.5 | 5 | 1 | 237 | 38 | 27 |
CST-2BD28218-R/G/B/W | 3 | 3 | 1 | 1 | 282 | 18 | 27 |
CST-2BD28228-R/G/B/W | 5.4 | 7.8 | 3 | 1 | 282 | 28 | 27 |
CST-2BD28238-R/G/B/W | 7.8 | 10.2 | 5 | 1 | 282 | 38 | 27 |
CST-2BD32718-R/G/B/W | 3.5 | 3.5 | 1 | 1 | 327 | 18 | 27 |
CST-2BD32728-R/G/B/W | 6.3 | 9.1 | 3 | 1 | 327 | 28 | 27 |
CST-2BD32738-R/G/B/W | 9.1 | 11.9 | 5 | 1 | 327 | 38 | 27 |
CST-2BD37218-R/G/B/W | 4 | 4 | 1 | 1 | 372 | 18 | 27 |
CST-2BD37228-R/G/B/W | 7.2 | 10.4 | 3 | 1 | 372 | 28 | 27 |
CST-2BD37238-R/G/B/W | 10.4 | 13.6 | 5 | 1 | 372 | 38 | 27 |
CST-2BD41718-R/G/B/W | 4.5 | 4.5 | 1 | 1 | 417 | 18 | 27 |
CST-2BD41728-R/G/B/W | 8.1 | 11.7 | 3 | 1 | 417 | 28 | 27 |
CST-2BD41738-R/G/B/W | 11.7 | 15.3 | 5 | 1 | 417 | 38 | 27 |
CST-2BD46218-R/G/B/W | 5 | 5 | 1 | 1 | 462 | 18 | 27 |
CST-2BD46228-R/G/B/W | 9 | 13 | 3 | 1 | 462 | 28 | 27 |
CST-2BD46238-R/G/B/W | 13 | 17 | 5 | 1 | 462 | 38 | 27 |
CST-2BD50718-R/G/B/W | 5.5 | 5.5 | 1 | 1 | 507 | 18 | 27 |
CST-2BD50728-R/G/B/W | 9.9 | 14.3 | 3 | 1 | 507 | 28 | 27 |
CST-2BD50738-R/G/B/W | 14.3 | 18.7 | 5 | 1 | 507 | 38 | 27 |
CST-2BD55218-R/G/B/W | 6 | 6 | 1 | 1 | 552 | 18 | 27 |
CST-2BD55228-R/G/B/W | 10.8 | 15.6 | 3 | 1 | 552 | 28 | 27 |
CST-2BD55238-R/G/B/W | 15.6 | 20.4 | 5 | 1 | 552 | 38 | 27 |
CST-2BD59718-R/G/B/W | 6.5 | 6.5 | 1 | 1 | 597 | 18 | 27 |
CST-2BD59728-R/G/B/W | 11.7 | 16.9 | 3 | 1 | 597 | 28 | 27 |
CST-2BD59738-R/G/B/W | 16.9 | 22.1 | 5 | 1 | 597 | 38 | 27 |
CST-2BD64218-R/G/B/W | 7 | 7 | 1 | 1 | 642 | 18 | 27 |
CST-2BD64228-R/G/B/W | 12.6 | 18.2 | 3 | 1 | 642 | 28 | 27 |
CST-2BD64238-R/G/B/W | 18.2 | 23.8 | 5 | 1 | 642 | 38 | 27 |
CST-2BD68718-R/G/B/W | 7.5 | 7.5 | 1 | 1 | 687 | 18 | 27 |
CST-2BD68728-R/G/B/W | 13.5 | 19.5 | 3 | 1 | 687 | 28 | 27 |
CST-2BD68738-R/G/B/W | 19.5 | 25.5 | 5 | 1 | 687 | 38 | 27 |
CST-2BD73218-R/G/B/W | 8 | 8 | 1 | 1 | 732 | 18 | 27 |
CST-2BD73228-R/G/B/W | 14.4 | 20.8 | 3 | 1 | 732 | 28 | 27 |
CST-2BD73238-R/G/B/W | 20.8 | 27.2 | 5 | 1 | 732 | 38 | 27 |
CST-2BD77718-R/G/B/W | 8.5 | 8.5 | 1 | 1 | 777 | 18 | 27 |
CST-2BD77728-R/G/B/W | 15.3 | 22.1 | 3 | 1 | 777 | 28 | 27 |
CST-2BD77738-R/G/B/W | 22.1 | 28.9 | 5 | 1 | 777 | 38 | 27 |
CST-2BD82218-R/G/B/W | 9 | 9 | 1 | 1 | 822 | 18 | 27 |
CST-2BD82228-R/G/B/W | 16.2 | 23.4 | 3 | 1 | 822 | 28 | 27 |
CST-2BD82238-R/G/B/W | 23.4 | 30.6 | 5 | 1 | 822 | 38 | 27 |
CST-2BD86718-R/G/B/W | 19.5 | 9.5 | 1 | 1 | 867 | 18 | 27 |
CST-2BD86728-R/G/B/W | 17.1 | 24.7 | 3 | 1 | 867 | 28 | 27 |
CST-2BD86738-R/G/B/W | 24.7 | 32.3 | 5 | 1 | 867 | 38 | 27 |
CST-2BD91218-R/G/B/W | 10 | 10 | 1 | 1 | 912 | 18 | 27 |
CST-2BD91228-R/G/B/W | 18 | 26 | 3 | 1 | 912 | 28 | 27 |
CST-2BD91238-R/G/B/W | 26 | 34 | 5 | 1 | 912 | 38 | 27 |
CST-2BD95718-R/G/B/W | 10.5 | 10.5 | 1 | 1 | 957 | 18 | 27 |
CST-2BD95728-R/G/B/W | 18.9 | 27.5 | 3 | 1 | 957 | 28 | 27 |
CST-2BD95738-R/G/B/W | 27.3 | 35.7 | 5 | 1 | 957 | 38 | 27 |
CST-2BD100218-R/G/B/W | 11 | 11 | 1 | 1 | 1002 | 18 | 27 |
CST-2BD100228-R/G/B/W | 19.8 | 28.6 | 3 | 1 | 1002 | 28 | 27 |
CST-2BD100238-R/G/B/W | 28.6 | 37.4 | 5 | 1 | 1002 | 38 | 27 |
CST-2BD104718-R/G/B/W | 11.5 | 11.5 | 1 | 1 | 1047 | 18 | 27 |
CST-2BD104728-R/G/B/W | 20.7 | 29.9 | 3 | 1 | 1047 | 28 | 27 |
CST-2BD104738-R/G/B/W | 29.9 | 39.1 | 5 | 1 | 1047 | 38 | 27 |
CST-2BD109218-R/G/B/W | 12 | 12 | 1 | 1 | 1092 | 18 | 27 |
CST-2BD109228-R/G/B/W | 21.6 | 31.2 | 3 | 1 | 1092 | 28 | 27 |
CST-2BD109238-R/G/B/W | 31.2 | 40.8 | 5 | 1 | 1092 | 38 | 27 |
CST-2BD113718-R/G/B/W | 12.5 | 12.5 | 1 | 1 | 1137 | 18 | 27 |
CST-2BD113728-R/G/B/W | 22.5 | 32.5 | 3 | 1 | 1137 | 28 | 27 |
CST-2BD113738-R/G/B/W | 32.5 | 42.5 | 5 | 2 | 1137 | 38 | 27 |
CST-2BD118218-R/G/B/W | 13 | 13 | 1 | 1 | 1182 | 18 | 27 |
CST-2BD118228-R/G/B/W | 23.4 | 33.8 | 3 | 1 | 1182 | 28 | 27 |
CST-2BD118238-R/G/B/W | 33.8 | 44.2 | 5 | 1 | 1182 | 38 | 27 |
CST-2BD122718-R/G/B/W | 13.5 | 13.5 | 1 | 1 | 1227 | 18 | 27 |
CST-2BD122728-R/G/B/W | 24.3 | 35.1 | 3 | 1 | 1227 | 28 | 27 |
CST-2BD122738-R/G/B/W | 35.1 | 45.9 | 5 | 1 | 1227 | 38 | 27 |
CST-2BD127218-R/G/B/W | 14 | 14 | 1 | 1 | 1272 | 18 | 27 |
CST-2BD127228-R/G/B/W | 25.2 | 36.4 | 3 | 1 | 1272 | 28 | 27 |
CST-2BD127238-R/G/B/W | 36.4 | 47.6 | 5 | 1 | 1272 | 38 | 27 |
CST-2BD131718-R/G/B/W | 14.5 | 14.5 | 1 | 1 | 1317 | 18 | 27 |
CST-2BD131728-R/G/B/W | 26.1 | 37.7 | 3 | 1 | 1317 | 28 | 27 |
CST-2BD131738-R/G/B/W | 37.7 | 49.3 | 5 | 1 | 1317 | 38 | 27 |
CST-2BD136218-R/G/B/W | 15 | 15 | 1 | 1 | 1362 | 18 | 27 |
CST-2BD136228-R/G/B/W | 27 | 39 | 3 | 1 | 1362 | 28 | 27 |
CST-2BD136238-R/G/B/W | 39 | 51 | 5 | 1 | 1362 | 38 | 27 |
CST-2BD140718-R/G/B/W | 15.5 | 15.5 | 1 | 1 | 1407 | 18 | 27 |
CST-2BD140728-R/G/B/W | 27.9 | 40.3 | 3 | 1 | 1407 | 28 | 27 |
CST-2BD140738-R/G/B/W | 40.3 | 52.7 | 5 | 1 | 1407 | 38 | 27 |
CST-2BD145218-R/G/B/W | 16 | 16 | 1 | 1 | 1452 | 18 | 27 |
CST-2BD145228-R/G/B/W | 28.8 | 41.6 | 3 | 1 | 1452 | 28 | 27 |
CST-2BD145238-R/G/B/W | 41.6 | 54.5 | 5 | 1 | 1452 | 38 | 27 |
CST-2BD149718-R/G/B/W | 16.5 | 16.5 | 1 | 1 | 1497 | 18 | 27 |
CST-2BD149728-R/G/B/W | 29.7 | 42.9 | 3 | 1 | 1497 | 28 | 27 |
CST-2BD149738-R/G/B/W | 42.9 | 56.1 | 5 | 1 | 1497 | 38 | 27 |
CST-2BD154218-R/G/B/W | 17 | 17 | 1 | 1 | 1542 | 18 | 27 |
CST-2BD154228-R/G/B/W | 30.6 | 44.2 | 3 | 1 | 1542 | 28 | 27 |
CST-2BD154238-R/G/B/W | 44.2 | 57.8 | 5 | 1 | 1542 | 38 | 27 |
CST-2BD158718-R/G/B/W | 17.5 | 17.5 | 1 | 1 | 1587 | 18 | 27 |
CST-2BD158728-R/G/B/W | 31.5 | 45.5 | 3 | 1 | 1587 | 28 | 27 |
CST-2BD158738-R/G/B/W | 45.5 | 59.5 | 5 | 1 | 1587 | 38 | 27 |
CST-2BD163218-R/G/B/W | 18 | 18 | 1 | 1 | 1632 | 18 | 27 |
CST-2BD163228-R/G/B/W | 32.4 | 46.8 | 3 | 1 | 1632 | 28 | 27 |
CST-2BD163238-R/G/B/W | 46.8 | 61.2 | 5 | 1 | 1632 | 38 | 27 |
CST-2BD167718-R/G/B/W | 18.5 | 18.5 | 1 | 1 | 1677 | 18 | 27 |
CST-2BD167728-R/G/B/W | 33.3 | 48.1 | 3 | 1 | 1677 | 28 | 27 |
CST-2BD167738-R/G/B/W | 48.1 | 62.9 | 5 | 1 | 1677 | 38 | 27 |
CST-2BD172218-R/G/B/W | 19 | 19 | 1 | 1 | 1722 | 18 | 27 |
CST-2BD172228-R/G/B/W | 34.2 | 49.4 | 3 | 1 | 1722 | 28 | 27 |
CST-2BD172238-R/G/B/W | 49.4 | 64.6 | 5 | 1 | 1722 | 38 | 27 |
CST-2BD176718-R/G/B/W | 19.5 | 19.5 | 1 | 1 | 1767 | 18 | 27 |
CST-2BD176728-R/G/B/W | 35.1 | 50.7 | 3 | 1 | 1767 | 28 | 27 |
CST-2BD176738-R/G/B/W | 50.7 | 66.3 | 5 | 1 | 1767 | 38 | 27 |
CST-2BD181218-R/G/B/W | 20 | 20 | 1 | 1 | 1812 | 18 | 27 |
CST-2BD181228-R/G/B/W | 36 | 52 | 3 | 1 | 1812 | 28 | 27 |
CST-2BD181238-R/G/B/W | 52 | 68 | 5 | 1 | 1812 | 38 | 27 |
CST-2BD185718-R/G/B/W | 20.5 | 20.5 | 1 | 1 | 1857 | 18 | 27 |
CST-2BD185728-R/G/B/W | 36.9 | 53.3 | 3 | 1 | 1857 | 28 | 27 |
CST-2BD185738-R/G/B/W | 53.3 | 69.7 | 5 | 1 | 1857 | 38 | 27 |
CST-2BD190218-R/G/B/W | 21 | 21 | 1 | 1 | 1902 | 18 | 27 |
CST-2BD190228-R/G/B/W | 37.8 | 54.6 | 3 | 1 | 1902 | 28 | 27 |
CST-2BD190238-R/G/B/W | 54.6 | 71.4 | 5 | 1 | 1902 | 38 | 27 |
CST-2BD194718-R/G/B/W | 21.5 | 21.5 | 1 | 1 | 1947 | 18 | 27 |
CST-2BD194728-R/G/B/W | 38.7 | 55.9 | 3 | 1 | 1947 | 28 | 27 |
CST-2BD194738-R/G/B/W | 55.9 | 73.1 | 5 | 1 | 1947 | 38 | 27 |
CST-2BD199218-R/G/B/W | 22 | 22 | 1 | 1 | 1992 | 18 | 27 |
CST-2BD199228-R/G/B/W | 39.6 | 57.2 | 3 | 1 | 1992 | 28 | 27 |
CST-2BD199238-R/G/B/W | 57.2 | 74.8 | 5 | 1 | 1992 | 38 | 27 |
CST-2BD203718-R/G/B/W | 22.5 | 22.5 | 1 | 1 | 2037 | 18 | 27 |
CST-2BD203728-R/G/B/W | 40.5 | 58.5 | 3 | 1 | 2037 | 28 | 27 |
CST-2BD203738-R/G/B/W | 58.5 | 76.5 | 5 | 2 | 2037 | 38 | 27 |
CST-2BD208218-R/G/B/W | 23 | 23 | 1 | 1 | 2082 | 18 | 27 |
CST-2BD208228-R/G/B/W | 41.4 | 59.8 | 3 | 1 | 2082 | 28 | 27 |
CST-2BD208238-R/G/B/W | 59.8 | 78.2 | 5 | 2 | 2082 | 38 | 27 |
CST-2BD212718-R/G/B/W | 23.5 | 23.5 | 1 | 1 | 2127 | 18 | 27 |
CST-2BD212728-R/G/B/W | 42.3 | 61.1 | 3 | 1 | 2127 | 28 | 27 |
CST-2BD212738-R/G/B/W | 61.1 | 79.9 | 5 | 2 | 2127 | 38 | 27 |
CST-2BD217218-R/G/B/W | 24 | 24 | 1 | 1 | 2172 | 18 | 27 |
CST-2BD217228-R/G/B/W | 43.2 | 62.4 | 3 | 1 | 2172 | 28 | 27 |
CST-2BD217238-R/G/B/W | 62.4 | 81.6 | 5 | 2 | 2172 | 38 | 27 |
CST-2BD221718-R/G/B/W | 24.5 | 24.5 | 1 | 1 | 2217 | 18 | 27 |
CST-2BD221728-R/G/B/W | 44.1 | 63.7 | 3 | 1 | 2217 | 28 | 27 |
CST-2BD221738-R/G/B/W | 63.7 | 83.3 | 5 | 2 | 2217 | 38 | 27 |
CST-2BD226218-R/G/B/W | 25 | 25 | 1 | 1 | 2262 | 18 | 27 |
CST-2BD226228-R/G/B/W | 45 | 65 | 3 | 1 | 2262 | 28 | 27 |
CST-2BD226238-R/G/B/W | 65 | 85 | 5 | 2 | 2262 | 38 | 27 |
CST-2BD230718-R/G/B/W | 25.5 | 25.5 | 1 | 1 | 2307 | 18 | 27 |
CST-2BD230728-R/G/B/W | 45.6 | 66.3 | 3 | 1 | 2307 | 28 | 27 |
CST-2BD230738-R/G/B/W | 66.3 | 86.7 | 5 | 2 | 2307 | 38 | 27 |
CST-2BD235218-R/G/B/W | 26 | 26 | 1 | 1 | 2352 | 18 | 27 |
CST-2BD235228-R/G/B/W | 46.8 | 67.6 | 3 | 1 | 2352 | 28 | 27 |
CST-2BD235238-R/G/B/W | 67.6 | 88.4 | 5 | 2 | 2352 | 38 | 27 |
CST-2BD239718-R/G/B/W | 26.5 | 26.5 | 1 | 1 | 2397 | 18 | 27 |
CST-2BD239728-R/G/B/W | 47.7 | 68.9 | 3 | 1 | 2397 | 28 | 27 |
CST-2BD239738-R/G/B/W | 68.9 | 90.1 | 5 | 2 | 2397 | 38 | 27 |
CST-2BD244218-R/G/B/W | 27 | 27 | 1 | 1 | 2442 | 18 | 27 |
CST-2BD244228-R/G/B/W | 48.6 | 70.2 | 3 | 1 | 2442 | 28 | 27 |
CST-2BD244238-R/G/B/W | 70.2 | 91.8 | 5 | 2 | 2442 | 38 | 27 |
CST-2BD248718-R/G/B/W | 27.5 | 27.5 | 1 | 1 | 2487 | 18 | 27 |
CST-2BD248728-R/G/B/W | 49.5 | 71.5 | 3 | 1 | 2487 | 28 | 27 |
CST-2BD248738-R/G/B/W | 71.5 | 93.5 | 5 | 2 | 2487 | 38 | 27 |
CST-2BD248718-R/G/B/W | 27.5 | 27.5 | 1 | 1 | 2487 | 18 | 27 |
CST-2BD248728-R/G/B/W | 49.5 | 71.5 | 3 | 1 | 2487 | 28 | 27 |
CST-2BD248738-R/G/B/W | 71.5 | 93.5 | 5 | 2 | 2487 | 38 | 27 |

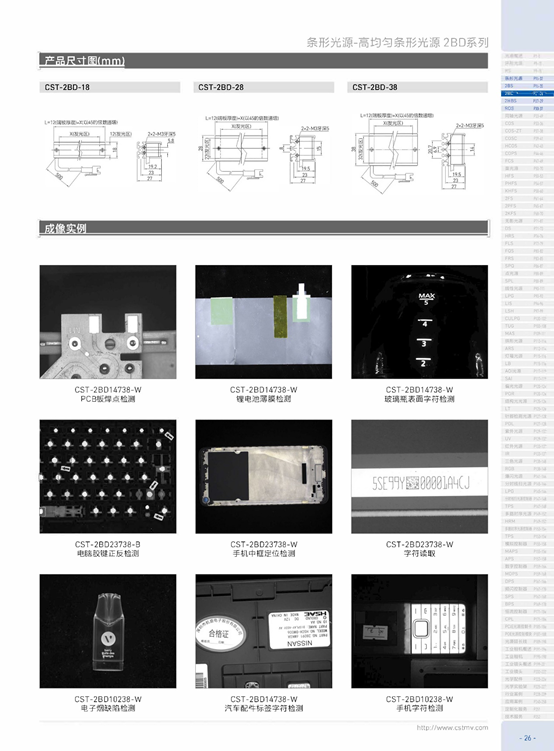

条形光源CST-2BD系列产品尺寸图
